Canvas LTI 1.3 Instructions

Follow
  1. Log in to your Canvas instance as an Administrator.

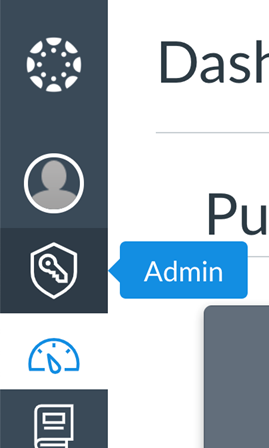

  2. From the left-hand menu, choose the “Admin” icon (currently a shield with a key inside). can1.png
  3. Select the name of your institution or account.

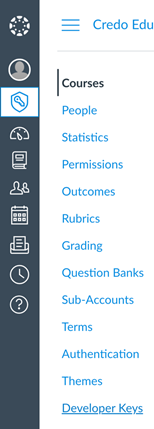

  4. From the list, scroll to and select “Developer Keys.”                                            can2.png

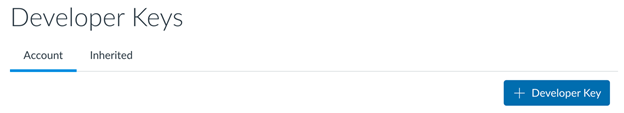

  5. Choose “+ Developer Key” from the right-hand side of the screen. can3.png

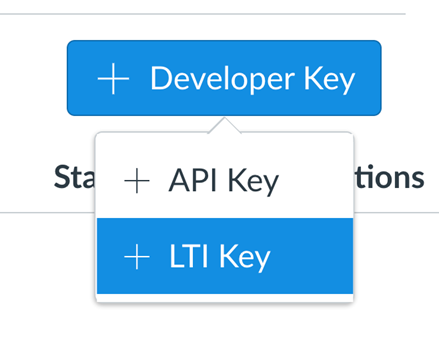

  6. From the drop-down list, select “+ LTI Key.” can4.png

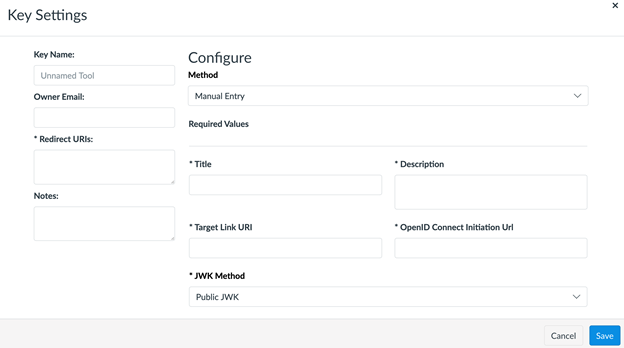

  7. The “Key Settings” screen will load. can5.png
  8. Enter the following information:

    Key Name: Infobase Learning Cloud

    Owner Email: [admin user email]

    Redirect URIs: https://learningcloud.infobase.com, https://learningcloud.infobase.com/lti

    Method: Manual Entry

    Title: Infobase Learning Cloud

    Description: With the Infobase Learning Cloud’s LTI Tool, instructors can search Infobase Learning Cloud’s online library of professional learning resources and technology training videos from within their LTI-compliant Learning Management System, as well as easily embed links to resources within courses and utilize grade center functions to record and present grades to students. This tool also allows faculty, staff, and students to have direct access to high-quality content from within their existing learning system—saving time, limiting distractions, and enhancing the learning experience.

    Target Link URI: https://learningcloud.infobase.com/lti

    OpenID Connect Initiation UrI: https://learningcloud.infobase.com/lti/login

    JWK Method: Public JWK URL

    Public JWK URL: https://learningcloud.infobase.com/lti/keys

    LTI Advantage Services: Enable all options

    Placements: Account Navigation, Link Selection, Assignment Selection
         Link Selection: Target URI: https://learningcloud.infobase.com/lti

         Link Selection: Select Message Type: LtiDeepLinkingRequest

         Link Selection: Text: Infobase Learning Cloud

         Assignment Selection: Target URI: https://learningcloud.infobase.com/lti

         Assignment Selection: Select Message Type: LtiDeepLinkingRequest

         Assignment Selection: Text: Infobase Learning Cloud

  9. Click Save.

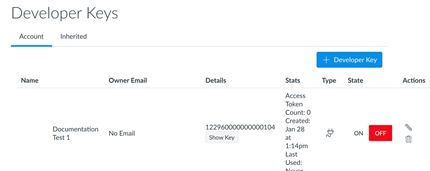

  10. The Developer Keys area will display the new developer key just created. By default, the key state is Off. Change this to On.                            can6.png
  11. Copy the number provided under Details.                                                  can7.png
  12. From the left-hand menu, select Admin and then scroll to Settings at the bottom of the list. can8.png
  13. From the Settings navigation across the top of the screen, choose Apps. can9.png

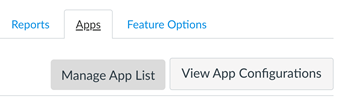

  14. Choose View App Configurations.                       can10.png

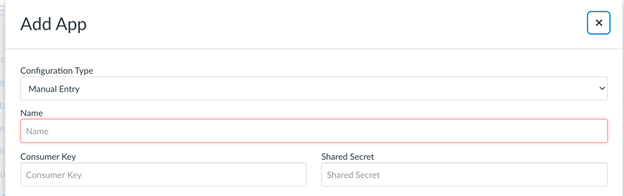

  15. Select + App.

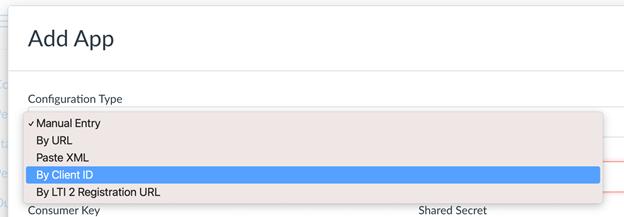

  16. From the Configuration Type dropdown, select By Client ID. can11.pngcan_12.png
  17. Paste the number copied in Step 11 in the Client ID box. Click Submit.
  18. When prompted by the Add App dialogue box, select Install.

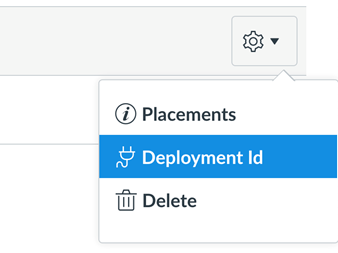

  19. From the External Apps list, find the tool added in the previous step. Click the down arrow next to the settings sprocket. Choose Deployment Id.      can12.png
  20. Copy this Deployment Id. Provide the Deployment ID and Client ID (copied in step 11, visible from Developer Keys under Details) to your Customer Success Manager to continue the LTI 1.3 linking process. You will also need to specify the custom URL of your Canvas instance (ex. https://[myuniversity].instructure.com) for us to register.
